Box/stake semi-trailer

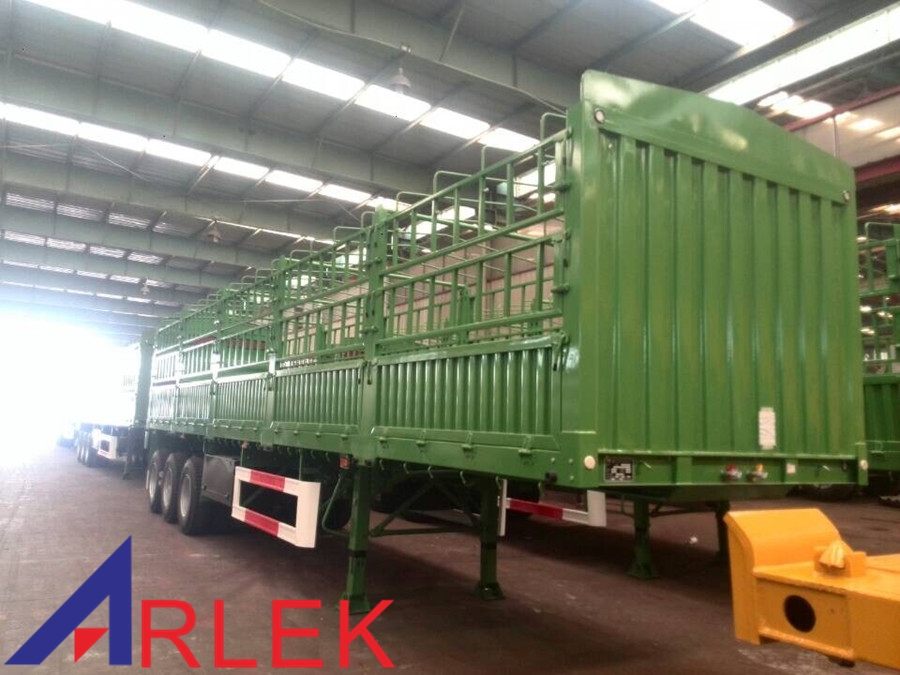

Box-stake semi-trailer

Box-stake semi-trailer. We provide varies style for the choice of customer.

For inquiry

Product details


1. Dimensions: 12400*2500*3680mm

2. Curb mass8000kg; total mass: 40000kg; rated load:32000kg; rear wheel track:1820mm; steel structure:Q550 (better than Q345B); girder height:500mm; upper flange thickness:12mm; web thickness:6mm; base board thickness:14mm.

3. Attached original parts:traction pin 90mm; Fuwa axle:3*13 tons; tire:11.00R20;dual-air chamber;leaf spring:10/10/10JOST supporting leg;12 locksets; Chinese standard electric system of 24V,7 sockets,LED lightpolyurethane paint.

4. Accessory:tool box, quantity 1; spare tire rack, quantity 2.
