1. Dimensions: 12400*2500*3680mm

2. Curb mass：8000kg; total mass: 40000kg; rated load:32000kg; rear wheel track:1820mm; steel structure：Q550 (better than Q345B); girder height:500mm; upper flange thickness:12mm; web thickness:6mm; base board thickness:14mm.

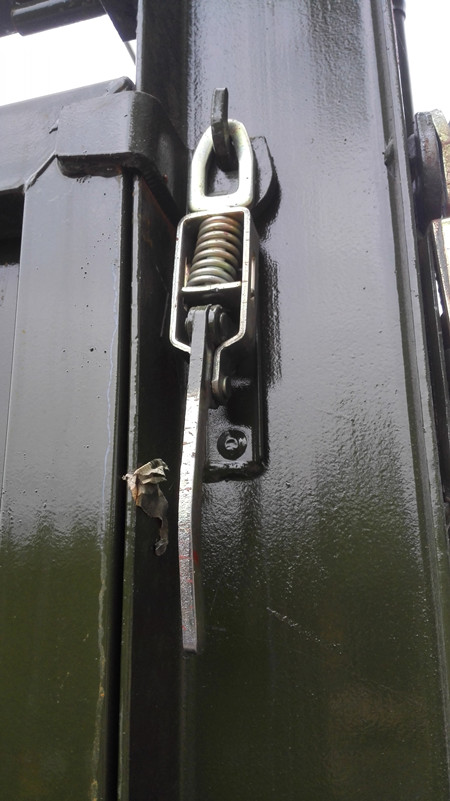

3. Attached original parts：traction pin 90mm; Fuwa axle:3*13 tons; tire:11.00R20；dual-air chamber；leaf spring:10/10/10；JOST supporting leg；12 locksets; Chinese standard electric system of 24V，7 sockets，LED light；polyurethane paint.

4. Accessory：tool box, quantity 1; spare tire rack, quantity 2.
