| External dimensions(mm) | 12980×2490×3950 | Total mass (kg) | 39950 |
| Cargo loading dimension(mm) | ×× | Rated load (kg) | 31600,31200 |
| Approach/departure angle | -/17 | Curb mass (kg) | 8350,8750 |
| Front/rear overhang(mm) | -/1860 | Max. driving speed (km/h) |
|
| Number of axle | 3 | Number of tire | 12 |
| Wheel base | 7200+1310+1310 | Tire | 11.00R20 |
| Axle load | 23950 (tridem axles) | Front wheel track |
|
| Number of leaf spring | -/8/8/8 | Rear wheel track | 1840 |

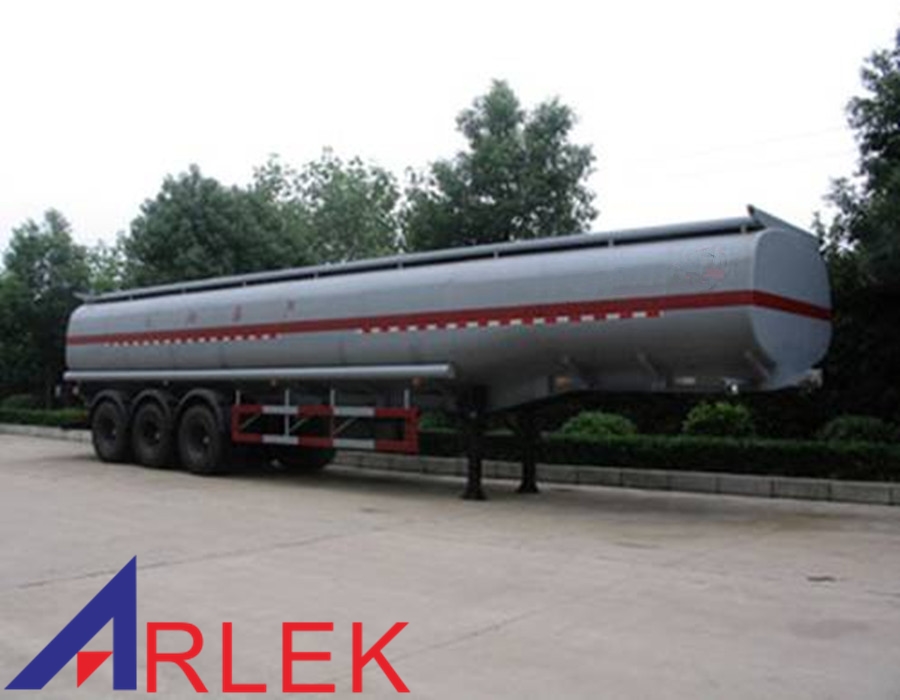

| Remarks | Tank volume is 40m3, and the tank body adopts aluminium sheet of 8mm, the front closure and the rear closure adopt aluminium sheet of 12mm ，with five 8m3 compartments ，each 富compartment shall have a 80# gravitational flow，90# traction pin，the tires employ double-coin brand 12.00R20，13-ton Fuwa axle，single acting leg 28T. | ||
