External dimensions(mm)

12980×2500×3820

Total mass (kg)

39800

Rated load(kg)

28000

Number of axle

3

Curb mass(kg)

11800

Wheel base

7200+1310+1310

Approach/departure angle

-/16

Axle load

-/23850(tridem axles)

Front/rear overhang(mm)

-/1860

Number of tire

12

Number of leafspring

8/8/8

Tire

12.00R20

Rear wheel track

1840

Tank

6mm aluminium alloy

5-compartment

Remarks

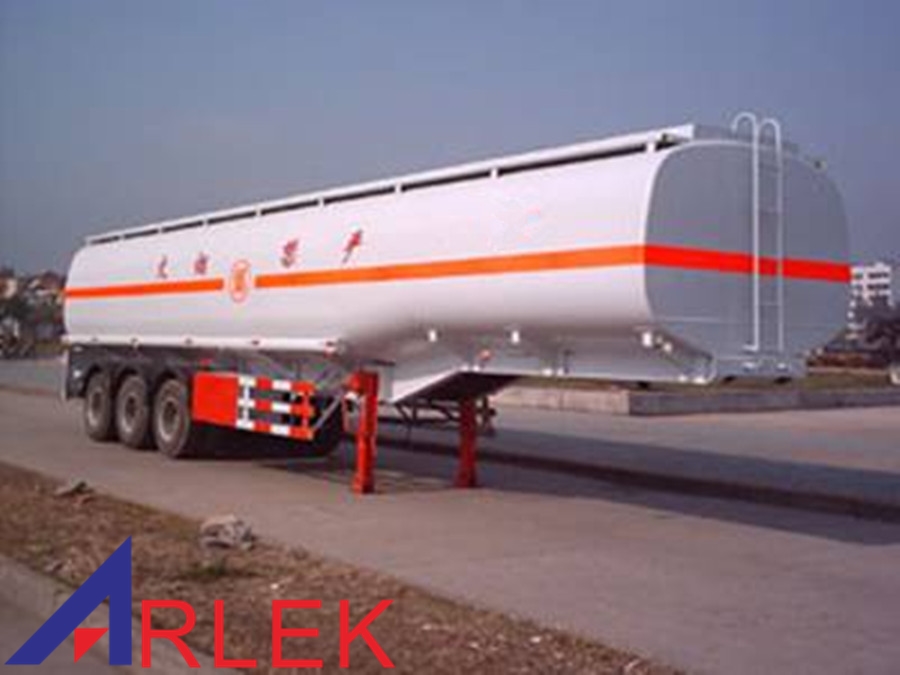

13-ton rear axle, aluminium tank, double-coin brand 12.00,R20 steel-wire tire，tank volume is 40m³with 5 compartments.
