Technical parameters

External dimensions

8595, 8980, 9130, 9380, 9900×2500×3060

Cargo box dimensions

Total mass

31000

Rated load

Curb mass

9200, 9600, 10100

Approach/departure angle

17/30

Front/rear overhang

1500/895, 1500/1080, 1500/1250

ABS

contained

Front seat passenger

2 persons

Number of axle

4

Wheel base

1800+3050+1350, 1800+3250+1350,

1800+3400+1350, 1800+3650+1350, 1800+4000+1350

Axle load

6500/6500/18000

(2-axle group)

Max. driving speed

90

Front wheel track

2020/2020

Rear wheel track

1860/1860

Fuel consumption

Number of leaf spring

8/8/10, 9/9/9, 9/9/10, 9/9/12, 9/9/13, 10/10/12, 10/10/13

Number of tire

12

Tire

10.00R20 18PR,

11.00R20 18PR,

12R22.5 18PR

Remarks

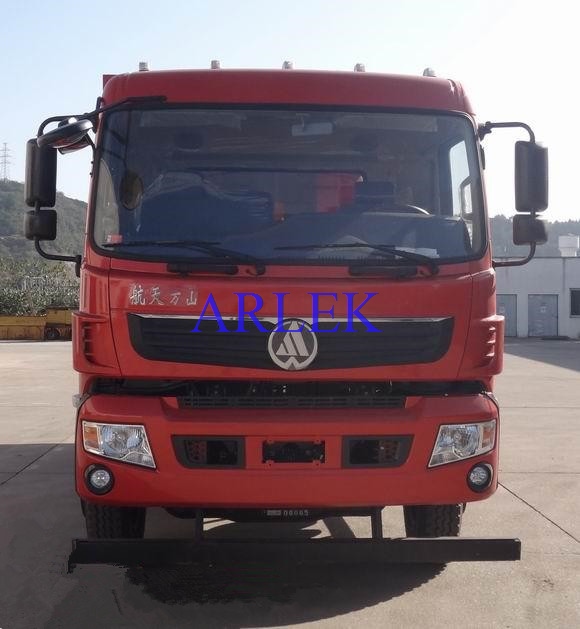

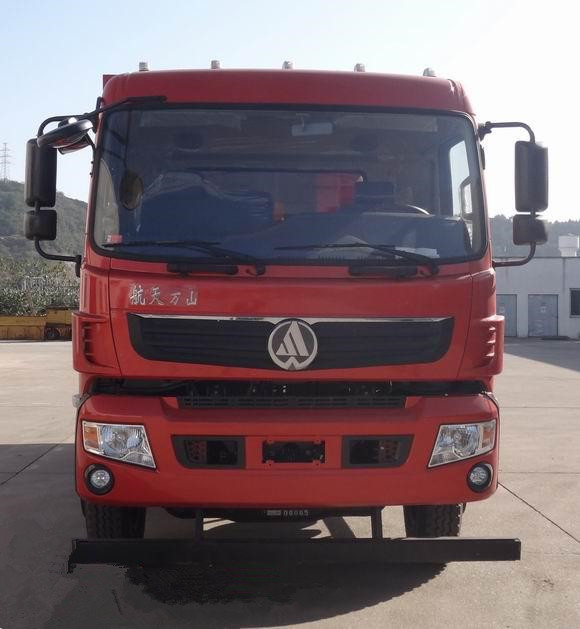

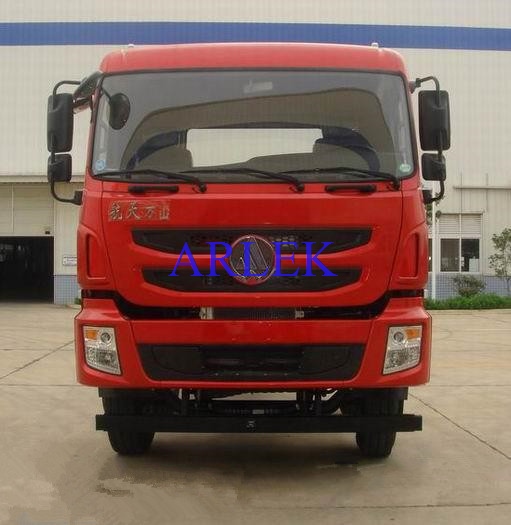

The front shape of the cab can be selected.

A travelling data recorder with satellite positioning function is included.

ABS

ABS型号: 446004****

WABCO, China

Fuel

LNG

Emisssion standard

Euro IV

Engine model

Engine manufacturer

Displacement

Power

WP10NG280E50

Weichai Westport Inc.

9726

206

WP10NG300E50

Weichai Westport Inc.

9726

220

WP10NG336E50

Weichai Westport Inc.

9726

247

WP12NG350E50

Weichai Westport Inc.

11596

257

WP12NG380E50

Weichai Westport Inc.

11596

280

WP12NG400E51

Weichai Westport Inc.

11596

294
